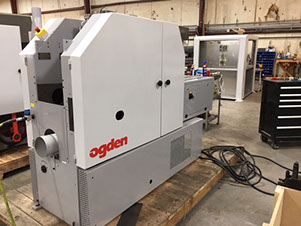

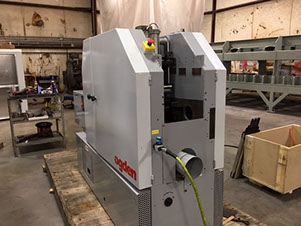

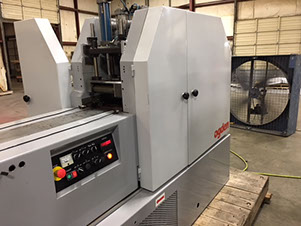

Reconditioned Thin cutting frame saw type TR 88 for cutting solid wood blocks into glue-able slats with a minimum of saw kerf waste

TECHNICAL DATA

• Voltage 480 V 60 HZ (other voltages available)
• Main Motor 15 kW
• Feeding Speed 1 to 2 /min
• Stroke of the Saw Frame 200 mm
• Strokes per minute 450 strokes/min
• Cutting Height 8" max
• Cutting Width 5.9" max
• Minimum Slat Thickness .100"
• Cutting Accuracy approx. + / - 0.2 mm
• Saw Kerf 1.25 to 1.4
• Saw Blade Life-Stellite Saws approx. 10 - 60 hrs.
• Dust Hood Diameter 1 x 120 mm top 1 x 160 mm bottom
• Machine Dimensions L 2600 mm x W 800 mm x H 1700 mm
• Machine Weight 3,300 kg or 7,200 lbs

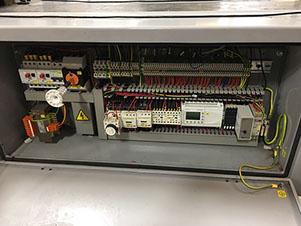

MACHINE EQUIPPED WITH

• 1 x Setup frame change device with dial indicator and lineal slide system

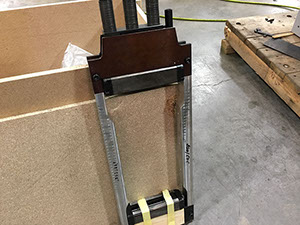

• 1 x Saw frame for maximum cutting 8" high
• 1 x Complete sets of spacers (according to customer’s size requirements)
• 1 x Complete sets of Saw Blades and Hoggers (according to customer’s size requirements)
• 1 x Precision torque wrench (200 Nm)
• 1 x Air blast system
• Automatic raise lower of the top feed rollers via air cylinders
• Digital feed speed indicator
• Automatic opening of the machine for frame removal
• Automatic central lubricating system
• Driven bottom feed rollers
• Adjustable chip breaker

1-Year Warranty Included

ABOUT

One-sided calibrating machine. For calibrating blocks.

PATENTED PROCEEDINGS

The tool rotates horizontally from left to right and works like a cutter. Very little force is exerted on the part being planed. Work piece KICK BACK common on conventional planers is totally eliminated on the Rotoplane system.

Spindle Arrangement:

• Horizontal above 15 KW (20 HP)
• The cutting disks are equipped with 28 four-sided throw away carbide tips. These inserts are installed around the circumference of the milling disk.
• The distance between the cutting disk and hold down platen is extremely short.

TECHNICAL DATA

• Working width 40-400 mm
• Minimum working thickness 2 mm
• Maximum working thickness 120 mm
• Minimum working length 125 mm
• Thickness motor 8.5 KW
• Drive motor 2.2 KW
• Feed speed 6- 36 m/min
• Spindle RPM 3067 RPM
• Number of insert knifes per disk 28 four sided inserts
• Installed power 17.2 KW
• Required air speed 30 m/sec
• Thicknesser maximum chip removal 3 mm
• Approximate machine weight 2,100 kg
• Operating voltage 460 Volts 60HZ
• Electronic adjustment via LCD digital display for Thickness head

ABOUT

Single sided calibrating machine. For the calibration of glued panels.

PATENTED PROCEEDINGS

The tool rotates horizontally from left to right and works like a cutter. Very little force is exerted on the part being planed. Work piece KICK BACK common on conventional planers is totally eliminated on the Rotoles system.

Spindle arrangement:

• Horizontal above 21 KW (30 HP)
• The cutting disk is equipped with 54 four-sided throw away carbide tips. These inserts are installed around the circumference of the milling disk.
• The distance between the cutting disk and hold down platten is extremely short.

OPTIONS

The 24T can come with a bottom head configuration and Sanding head after the top head.

SPECIFICATIONS

• Working width 600 mm (24")
• Minimum working thickness 2 mm (1/16)
• Maximum working thickness 150 mm (6")
• Minimum working length 125 mm (5")
• Thickness motor 21 KW (30 HP)
• Maximum chip removal thicknesser head 4 mm (5/16")
• Number of insert knifes on disk 54 four sided inserts
• Feed speed 20 - 120 ft/min
• Drive motor 2 KW (3 HP)
• Installed power 23 KW
• Dust collection air speed 30m/sec
• Machine dimensions length 102", width 85", height 87"
• Approximate machine weight 4320 kg (9,500 lbs)
• Operating voltage 460 Volts 60HZ
• Electronic adjustment via LCD digital display for Thickness head.
